ATX Power Control
Only on JetKVM for now. Support for JetKVM Mini comes in a later release.
Install the boardMount it in your PC, wire the front panel header and connect the JetKVM.TroubleshootThe PC doesn't power on, reset or shut down from JetKVM.

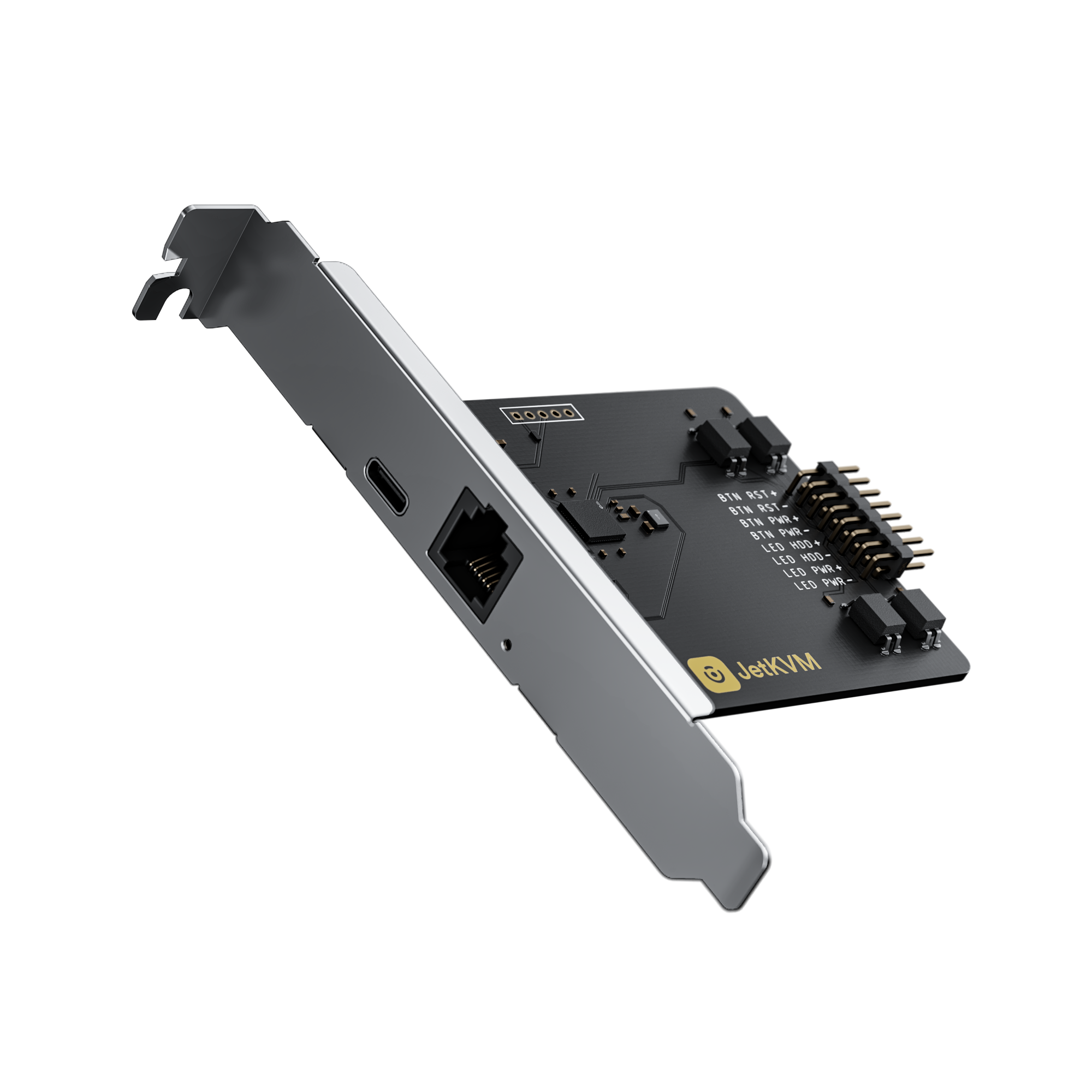

A board that mounts in a free PCIe slot opening and sits between the motherboard's F_PANEL header and the case's front panel cables, so the case buttons and LEDs keep working. Its USB-C port or pin header can also power the JetKVM.
In the web interface, Power gives a short press, like tapping the case button. Hold it for 3 seconds to hold the button down instead, which forces the PC off.
Works with
| Connection | Works with |
|---|---|
| RJ-12 cable | JetKVM |
| 5-pin to RJ-12 cable | JetKVM (microSD) and JetKVM PoE |
In the box
- ATX extension board with USB-C and extension ports
- Extension cable to the JetKVM
- PCIe slot cover brackets, standard and small
- 10-pin ribbon cable to the motherboard's
F_PANELheader - USB-C to USB-A cable
- Jumper caps, 4
